SZ100 LED Sync Dimmer Smart LED Controller RGBW RGBCCT CCT DIM Input/Output Voltage 12-24VDC Wired & Wireless Sync Bluetooth WiFi Tuya Alexa Google Compatible
The Supply LED Sync Dimmer Controller (Model SZ100) is a high-performance lighting control solution engineered for synchronized dimming across multiple zones using RJ45 connections.
Shipping
Free shipping on orders of $199 or more. Shipping costs are otherwise calculated at checkout based on the total weight and quantity of your order. Some heavy or oversized fixtures may require separate shipping at a standard flat rate. Orders placed after 10:00 AM EST ship the next business day.
Returns & warranty claims
Returns are accepted within 30 days of the delivery date with an RMA number. Damage or missing-item claims must be filed within 7 days of delivery. For a warranty claim, contact support with your order details, a description of the issue and product images.
Product details
Description

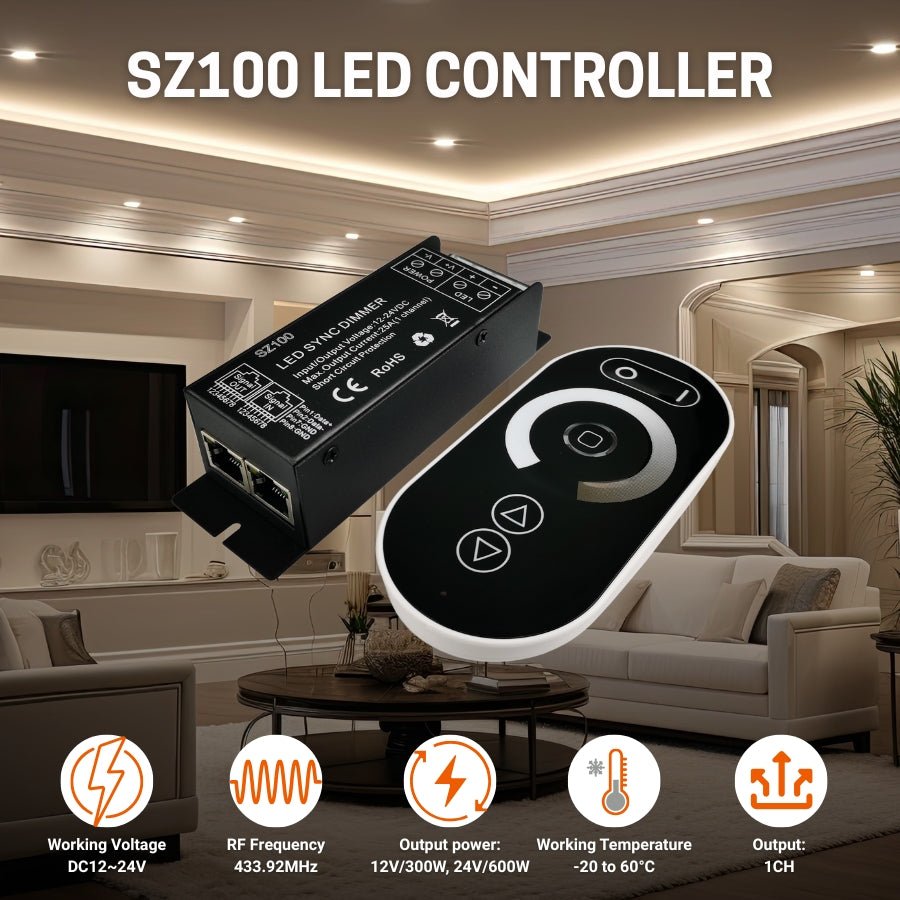

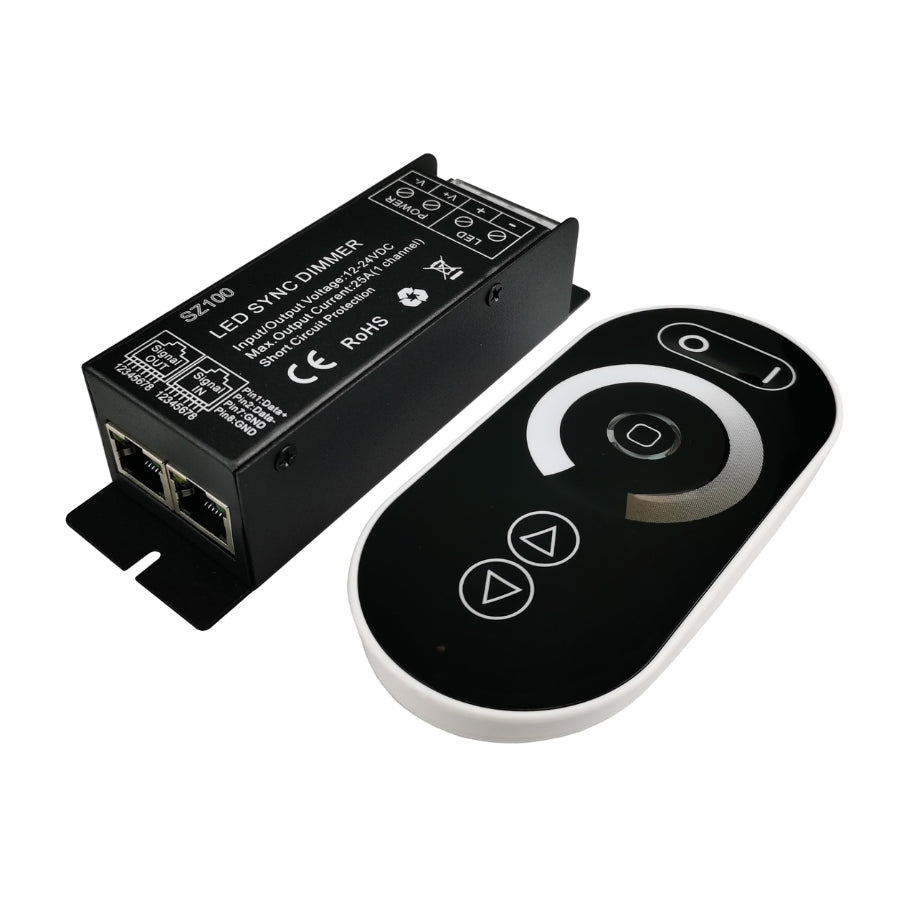

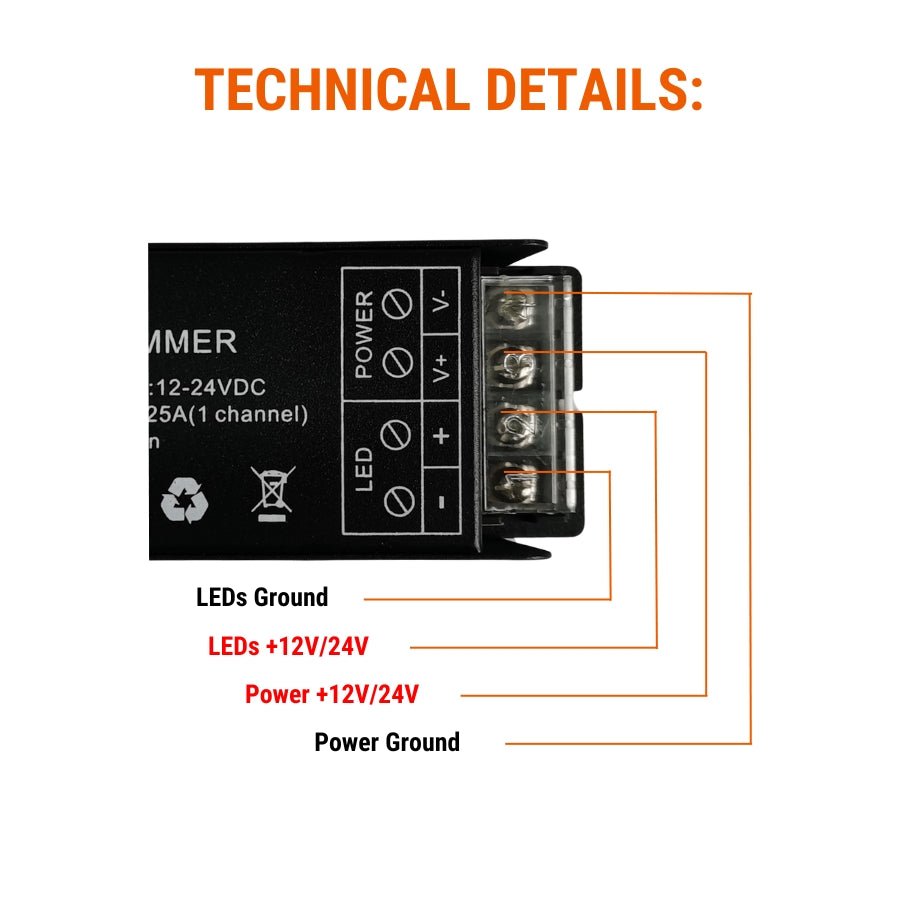

The Supply LED Sync Dimmer Controller (Model SZ100) is a high-performance lighting control solution engineered for synchronized dimming across multiple zones using RJ45 connections. Designed for compatibility with DC12V-24V power supplies, it supports up to 25A output, providing a maximum power output of 300W at 12V or 600W at 24V.

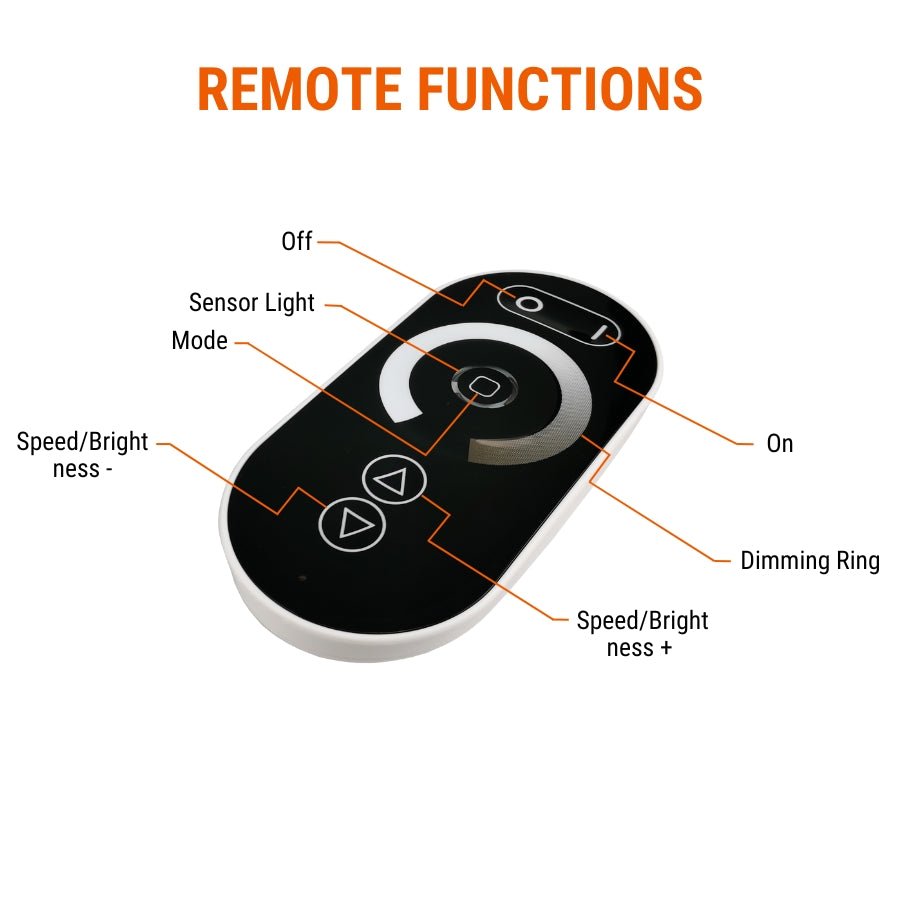

This controller uses a common anode output and features built-in short circuit protection, making it reliable and safe for both residential and commercial lighting installations. It comes with a sleek and intuitive R-touch RF remote control equipped with a dimming ring and five function buttons, allowing users to easily toggle between Static ON/OFF, Flash, and Fade modes, while adjusting brightness and speed to suit various lighting environments.

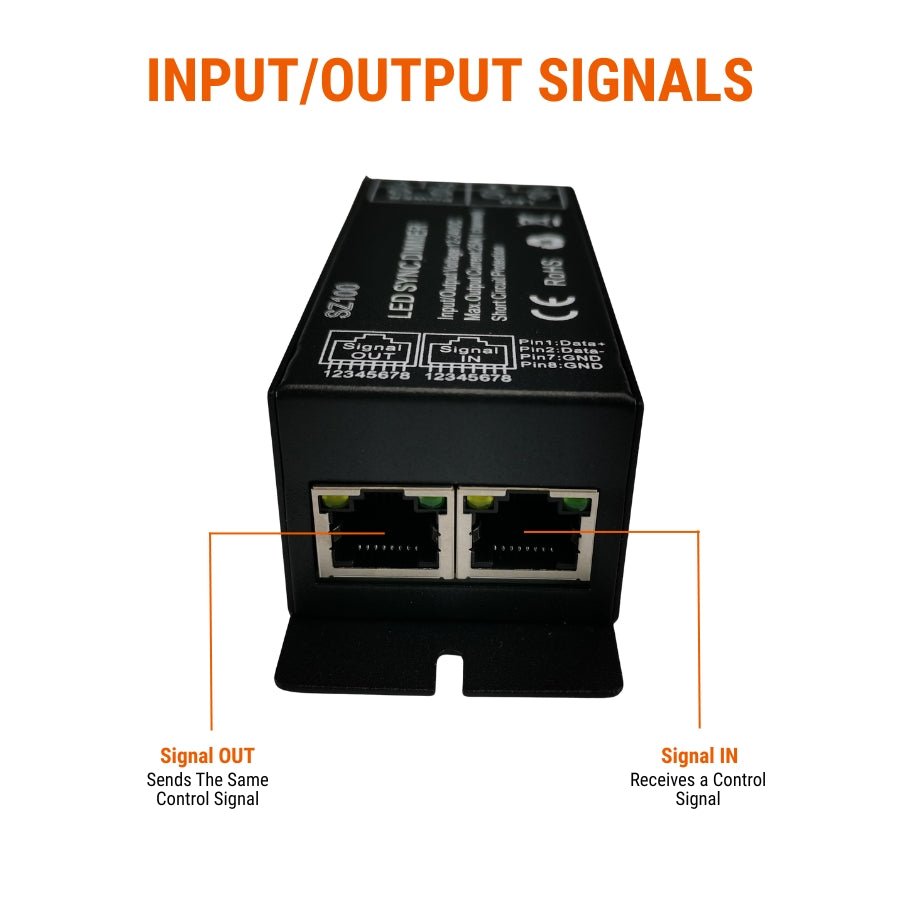

The RJ45 sync-work function enables multiple controllers to operate in perfect harmony, making it ideal for complex multi-zone lighting projects. Visual indicators for MCU/RF, power, and SYNC signal in/out are provided on the controller for real-time system status and troubleshooting.
Its compact and durable design, combined with a user-friendly remote pairing process, ensures ease of use and robust performance, making it the perfect choice for professionals seeking dependable lighting control solutions.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Supply |
| Model | SZ100 by Supply |
| Input Voltage | DC12V-24V |
| Output Channel | 1 Channel (Common Anode) |
| Max Output Current | 25A |
| Output Power | 300W @ 12V / 600W @ 24V |
| Working Temperature | -20°C to 60°C |
| Control Method | RF Touch Remote |
| Remote Features | Dimming ring + 5 functional buttons |
| Remote Power | 3 × AAA Batteries |
| Control Modes | Static ON/OFF, Flash, Fade |
| Adjustable Parameters | Brightness (Static/Fade), Speed (Flash/Fade) |
| Sync Function | RJ45 Interface (Sync-Work Function) |
| Indicators | MCU/RF, Power, SYNC Signal In/Out LEDs |
| Short Circuit Protection | Yes |
| Product Size | 175 × 45 × 27 mm |
| Packing Size | 178 × 48 × 31 mm |
| Net / Gross Weight | 225g / 300g |
