Smart LED Controller SZ900-X5, 5 in 1 RGB, RGBW, RGBCCT, CCT, DIM, Tuya LED Strip Light Controller, Bluetooth and WiFi Control, Multi-Zone Sync, Works with Alexa and Google, 12V 24V, 58A Output, 2KHz or 15KHz PWM
The Supply SZ900 W5 is a versatile and intelligent 2-in-1 LED controller designed for advanced lighting systems in both residential and commercial environments.
Shipping
Free shipping on orders of $199 or more. Shipping costs are otherwise calculated at checkout based on the total weight and quantity of your order. Some heavy or oversized fixtures may require separate shipping at a standard flat rate. Orders placed after 10:00 AM EST ship the next business day.
Returns & warranty claims
Returns are accepted within 30 days of the delivery date with an RMA number. Damage or missing-item claims must be filed within 7 days of delivery. For a warranty claim, contact support with your order details, a description of the issue and product images.
Product details
Description
The Supply SZ900 W5 is a versatile and intelligent 2-in-1 LED controller designed for advanced lighting systems in both residential and commercial environments. Featuring both wired and wireless synchronization, this controller enables seamless multi-controller operation over a distance of up to 30 meters, which can be extended to 600 meters by synchronizing up to 50 units.
With support for single color, CCT, RGB, RGBW, and RGB+CCT LED setups, the SZ900 W5 offers a flexible 5-channel output powered by precise RF 2.4GHz technology. It delivers ultra-smooth transitions through 1024-level dimming and speed control, and allows users to select between 2KHz and 15KHz PWM frequencies based on project needs.

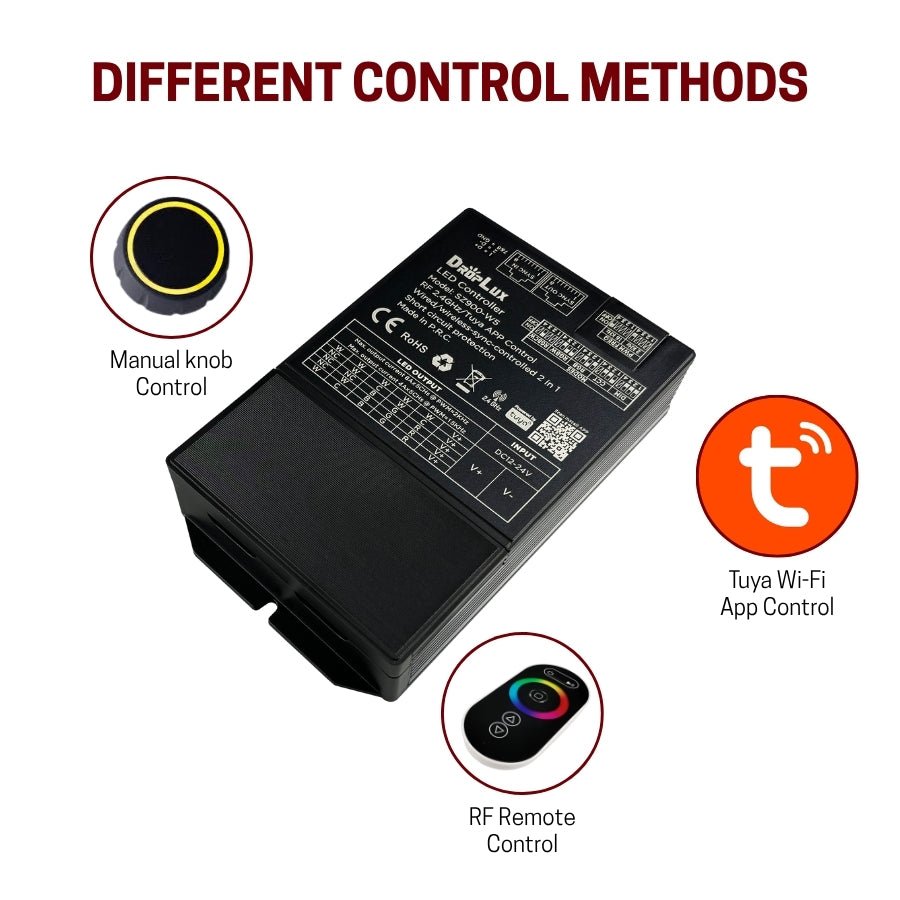

Equipped with built-in short circuit protection, power-off memory, and Tuya Smart App integration via Wi-Fi and Bluetooth, this controller enables remote operation through mobile apps, voice assistants (like Alexa and Google Assistant), and group scene configuration.
The controller features a screwless, press-to-release cover for quick access, and DIP switch settings for fast configuration of the LED output type. Compatible with the WR6F series RF remotes and smart control ecosystems, the SZ900 W5 is ideal for scalable, intelligent lighting solutions that require ease of setup, durability, and superior performance.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Supply |
| Model | SZ900 W5 by Supply |
| Input Voltage | DC12V-24V (Recommended Range: DC6V-24V) |
| Working Temperature | 0°C to 45°C |

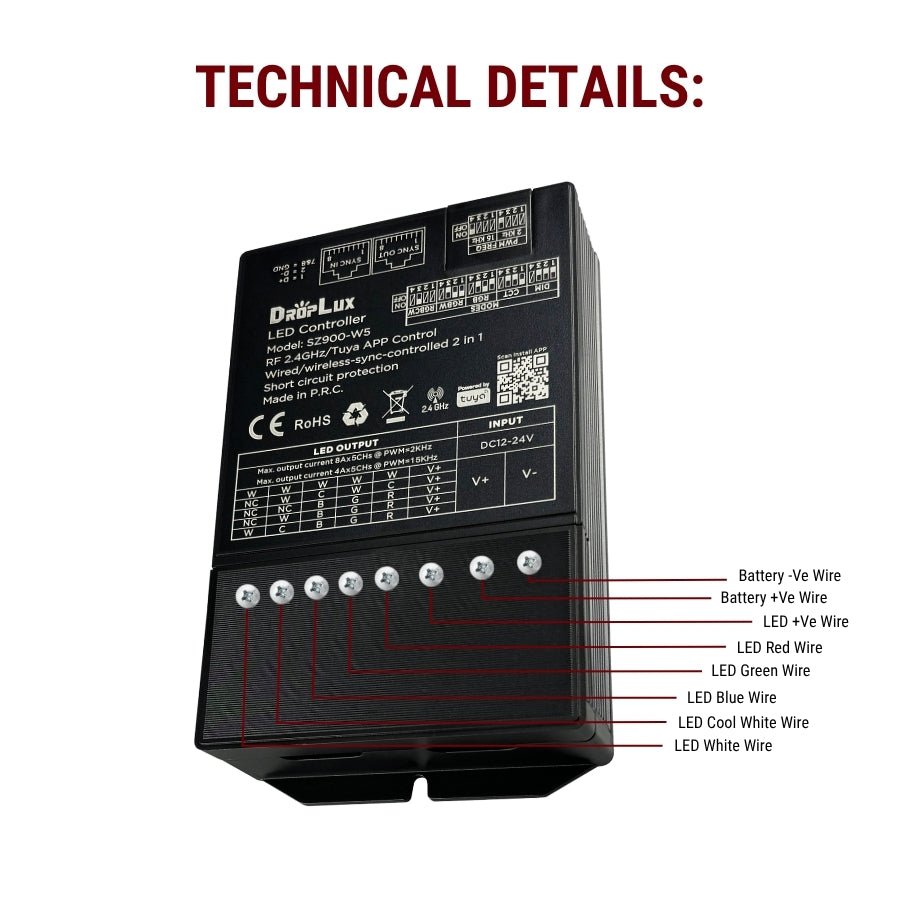

| Output Channels | 5 Channels (Single Color / CCT / RGB / RGBW / RGB+CCT) |
| Connection Type | Common Anode |
| PWM Frequency | 2KHz or 15KHz (Selectable) |
| Gray Scale | 1024 Levels |
| Speed Levels | 1024 Levels |
| RF Frequency / Range | 2.4GHz / Up to 30m (600m with 50 synced units) |
| Max Output (2KHz) | 58A Max - 12V: 480W / 24V: 960W |
| Max Output (15KHz) | 54A Max - 12V: 240W / 24V: 480W |
| Short Circuit Protection | Yes |
| Power-Outage Memory | Yes |
| Wired Synchronization | Supported |
| Wireless Synchronization | Supported |
| Smart Control | Tuya App (Wi-Fi + Bluetooth), Voice Control |
| Remote Compatibility | RF 2.4GHz (e.g., WR6F series remotes) |

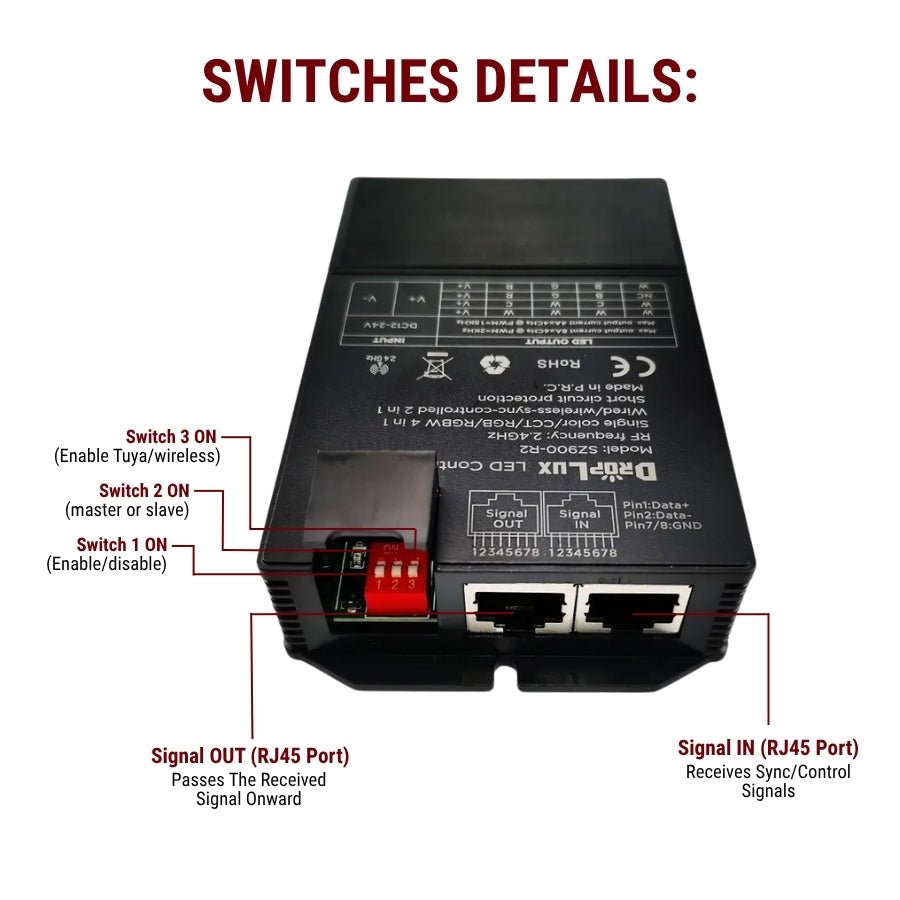

| DIP Switch Settings | For selecting LED output mode |

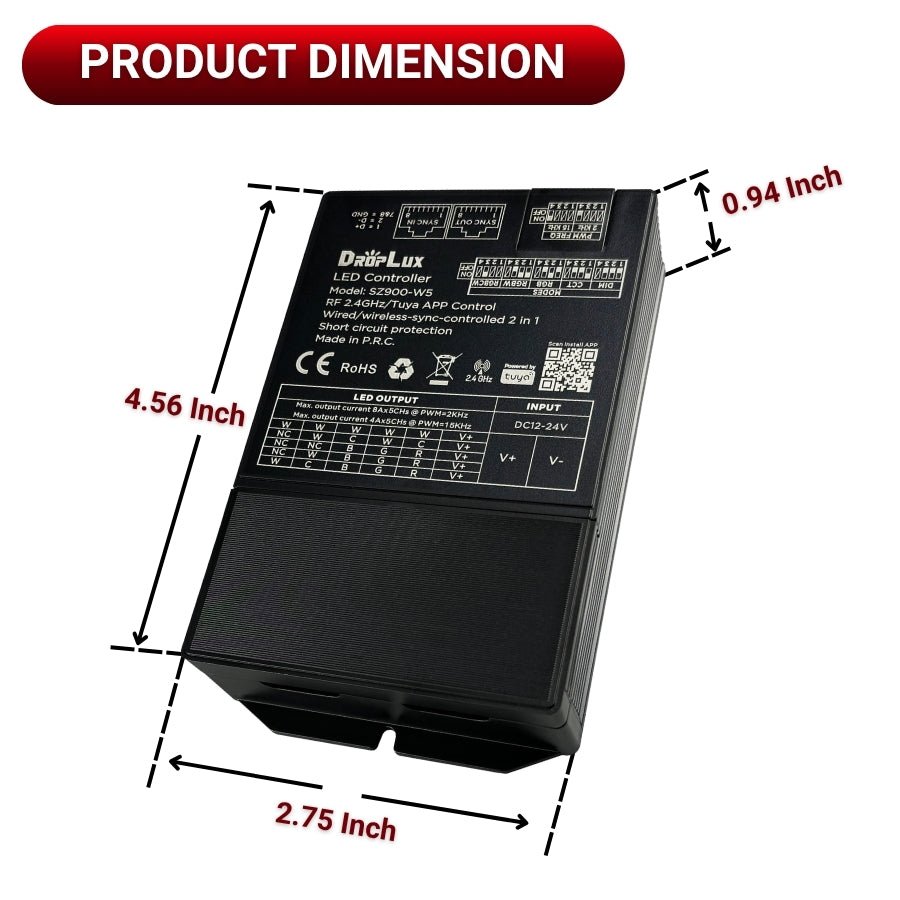

| Product Dimensions | 115 × 70 × 24 mm |
| Packing Dimensions | 120 × 75 × 30 mm |
| Net / Gross Weight | 125g / 140g |
| Cover Type | Screwless, press-to-release design |
