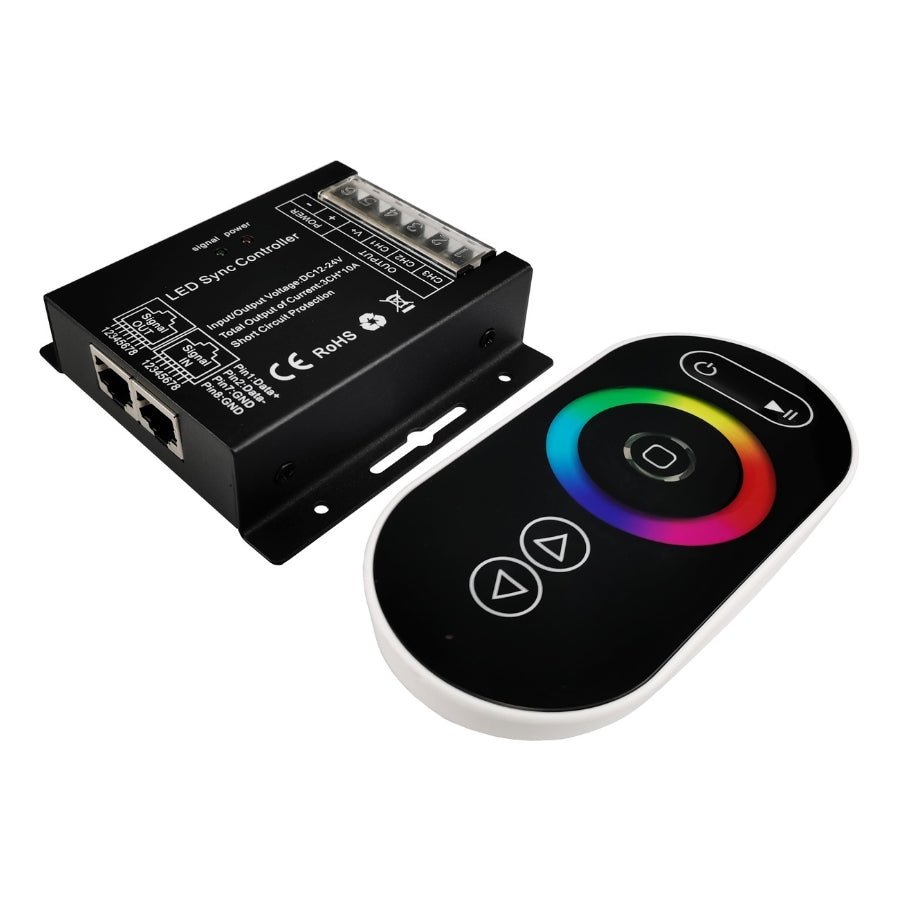

RGB LED Controller with RF Touch Remote - DC12V-24V, 3 Channel Dimmer, 432W Max Output - 10 Lighting Modes, Sync Function, Short Circuit Protection - for LED Strip Lights, Common Anode
Upgrade your LED strip lighting experience with the RGB LED Controller with RF Touch Remote - an intuitive and high-performance solution designed to give you full control over color, brightness, and lighting effects.
Shipping
Free shipping on orders of $199 or more. Shipping costs are otherwise calculated at checkout based on the total weight and quantity of your order. Some heavy or oversized fixtures may require separate shipping at a standard flat rate. Orders placed after 10:00 AM EST ship the next business day.
Returns & warranty claims
Returns are accepted within 30 days of the delivery date with an RMA number. Damage or missing-item claims must be filed within 7 days of delivery. For a warranty claim, contact support with your order details, a description of the issue and product images.
Product details
Description
Upgrade your LED strip lighting experience with the RGB LED Controller with RF Touch Remote - an intuitive and high-performance solution designed to give you full control over color, brightness, and lighting effects. Whether you’re lighting up a home, office, retail space, or stage, this controller delivers a seamless and reliable lighting transformation at your fingertips.

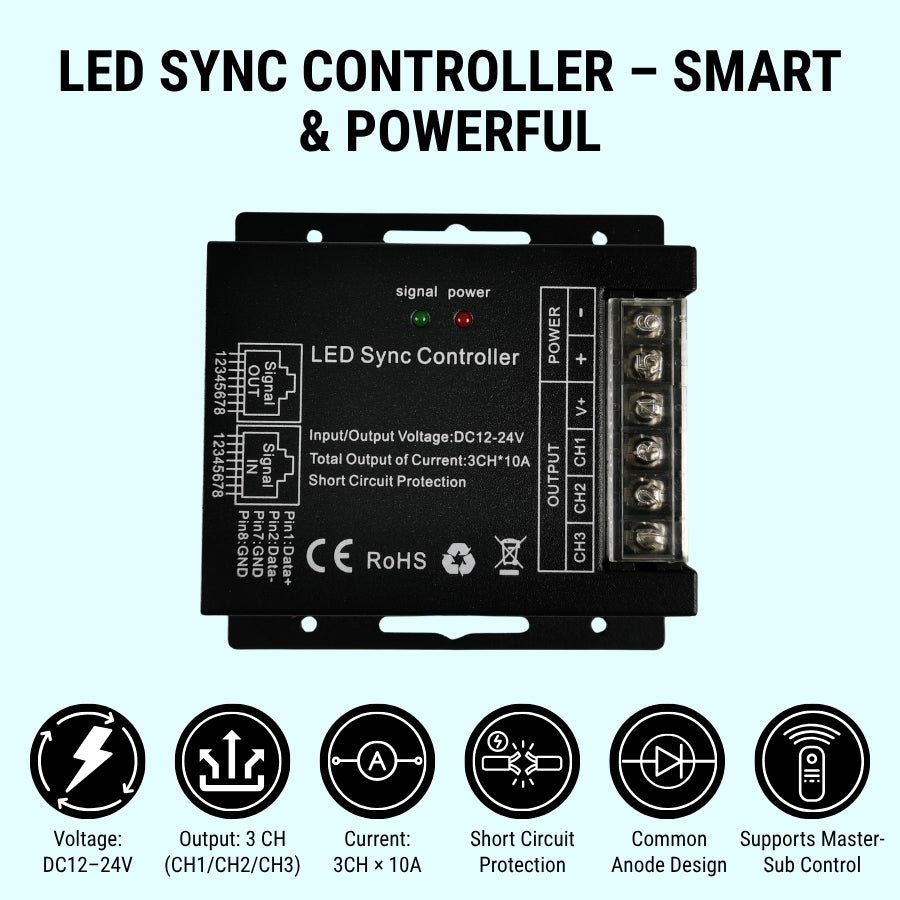

This controller supports DC12V-24V input and provides 3-channel output (R/G/B) with up to 432W max power, making it suitable for long LED strip installations. Built with short circuit protection and a common anode connection, it’s a robust and safe solution for both beginners and pros.

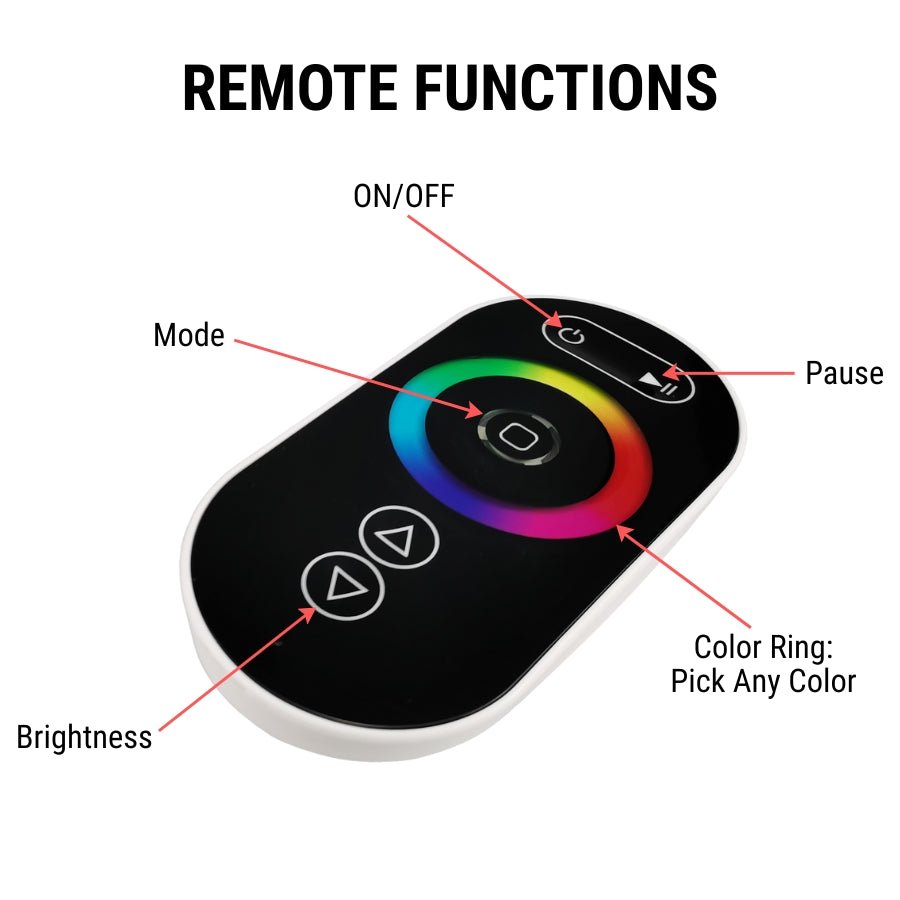

The included RF touch remote features a color wheel and 5 multifunction buttons for easy on/off, mode switching, brightness control, and speed adjustment. Choose from 10 dynamic lighting modes, including static colors, fading transitions, breathing effects, and strobes. Easily sync multiple controllers (Master + Sub-control) using the built-in synchronization function, perfect for consistent ambient lighting across large or multi-room setups.
Trust in Supply to bring professional-grade lighting control into your hands with durability, ease of use, and stunning results.
Features
| Feature | Value / Function |
|---|---|
| Input Voltage | DC12V-24V (Do not connect to other voltages) |
| Output Channels | 3 (RGB) |
| Max Output Power | 432W (24V × 6A × 3 channels) |
| Output Current | <6A per channel |
| Control Type | RF Touch Remote (Color Ring + 5 Buttons) |

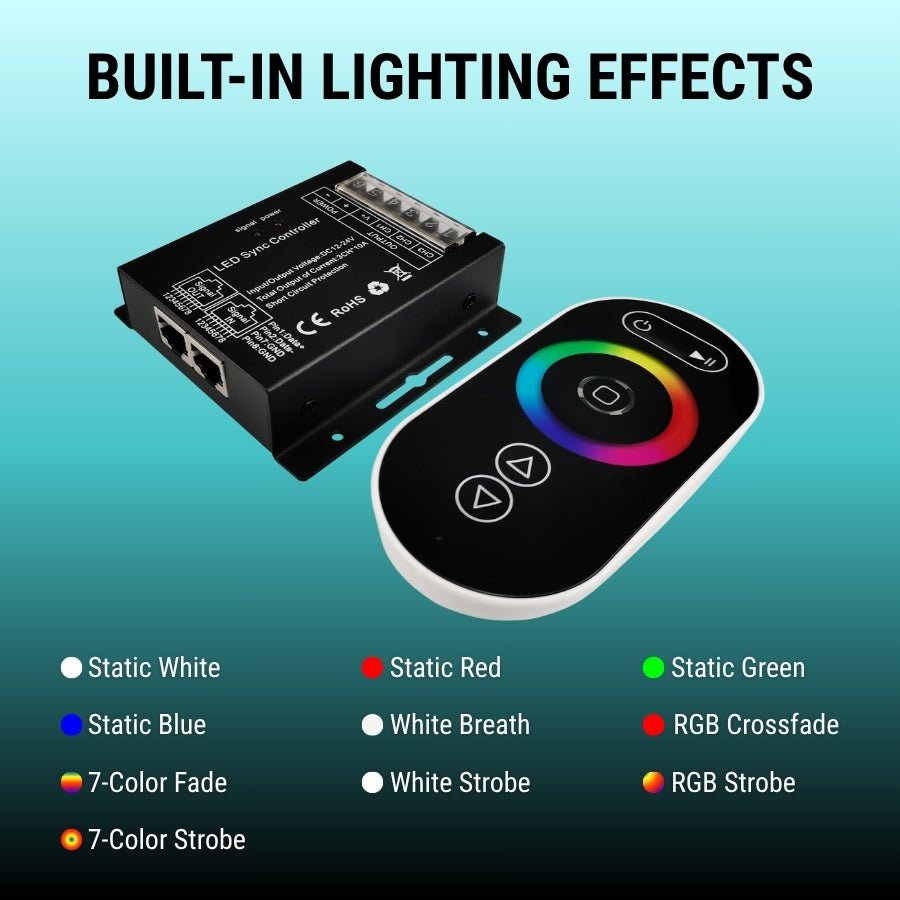

| Lighting Modes | 10 Modes (Static, Fade, Breath, Strobe) |
| Brightness Control | Yes - Static modes adjustable |
| Speed Control | Yes - Dynamic modes adjustable |

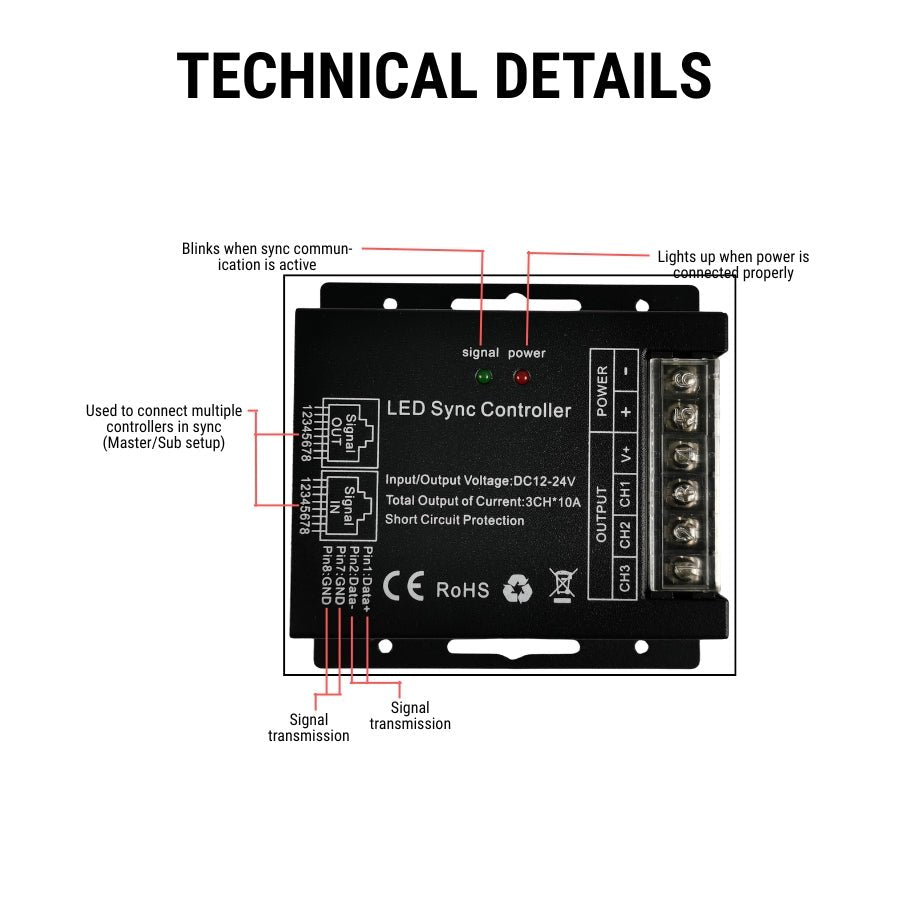

| Sync Capability | Master/Sub-Controller setup supported |
| Short Circuit Protection | Yes |
| Connection Type | Common Anode |
| Operating Temp | -20°C to +60°C |
| Controller Size | 85 × 45 × 23 mm |
| Remote Range | Long-range RF (no line-of-sight required) |
| Code Matching & Reset | Easy pairing & unpairing instructions included |
| Warranty | 3 Years |
Important Usage Note:

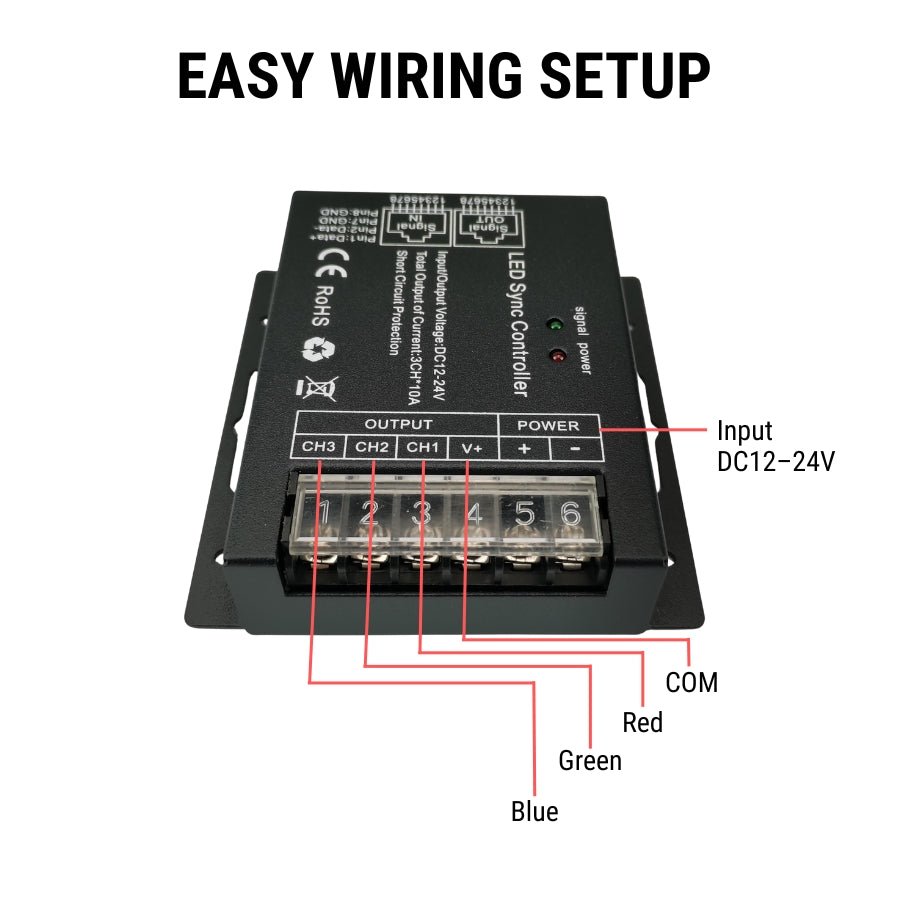

Only use with DC12V-24V power supplies. Always follow the wiring diagram to prevent damage. The LED signal light must flash uniformly for proper syncing, uneven blinking means incorrect connections.
Take control of your ambiance with the trusted performance of Supply. Order now and create your perfect light scene today!
