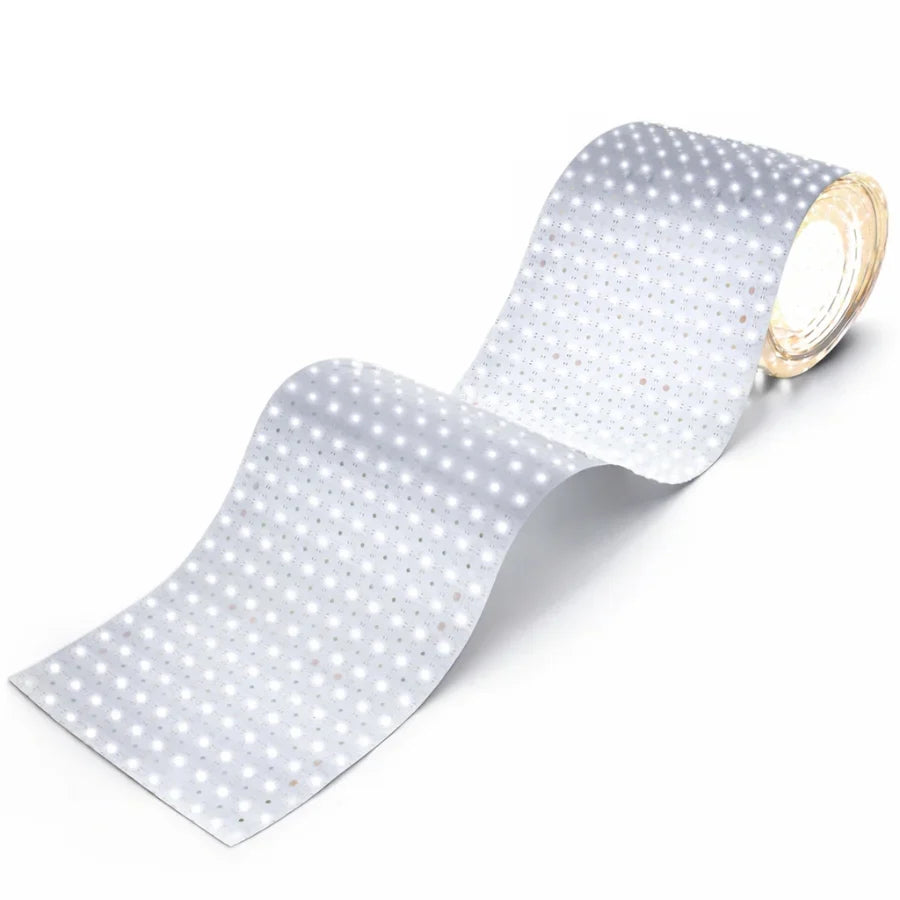

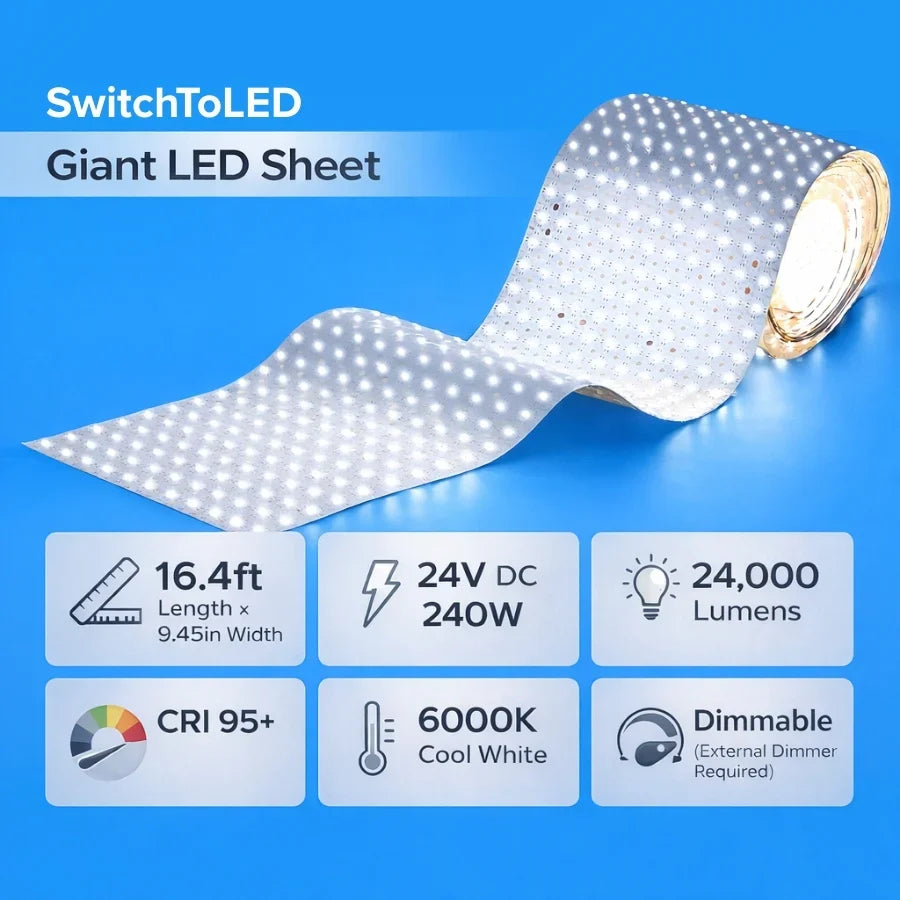

16.4ft x 9.45in Giant LED Sheet Roll, 24V 6000K Cool White Flexible Cuttable Dimmable LED Backlight Panel, Paper-Thin Plug-and-Play LED Board for Countertops, Stained Glass & Accent Walls, UL-Listed, IP20
Upgrade large backlighting projects with the Supply Giant LED Sheet Roll, engineered for powerful, seamless illumination across expansive surfaces. Measuring 16.4ft x 9.45in, this ultra-long LED backlight sheet covers 12.9 sq. ft.
Shipping
Free shipping on orders of $199 or more. Shipping costs are otherwise calculated at checkout based on the total weight and quantity of your order. Some heavy or oversized fixtures may require separate shipping at a standard flat rate. Orders placed after 10:00 AM EST ship the next business day.
Returns & warranty claims
Returns are accepted within 30 days of the delivery date with an RMA number. Damage or missing-item claims must be filed within 7 days of delivery. For a warranty claim, contact support with your order details, a description of the issue and product images.
Product details
Description
Featuring 2,640 high-density SMD 2835 LEDs, it delivers an impressive 24,000 lumens of bright 6000K cool white light with CRI 95+ for exceptional clarity and true color rendering. The paper-thin, flexible PCB design bends easily around curves and corners, while precise cut lines allow custom sizing for countertops, walls, and display panels. Designed for professional installations, it supports daisy-chaining up to two rolls with no voltage drop and includes a complete accessory pack for fast, secure mounting. Ideal for commercial and residential backlighting under marble, granite, or stained glass in dry indoor environments.
Features
-
Extra-Large LED Sheet Coverage - One 16.4ft roll covers 12.9 sq. ft., equivalent to 10 regular LED sheets
-
High Brightness & Color Accuracy - 24,000 lumens output with CRI 95+ for clear, eye-comfortable lighting
-
6000K Cool White Light - Crisp, modern illumination for premium backlighting applications
-
Ultra-Slim & Flexible Design - Paper-thin PCB bends easily for curved and corner installations
-

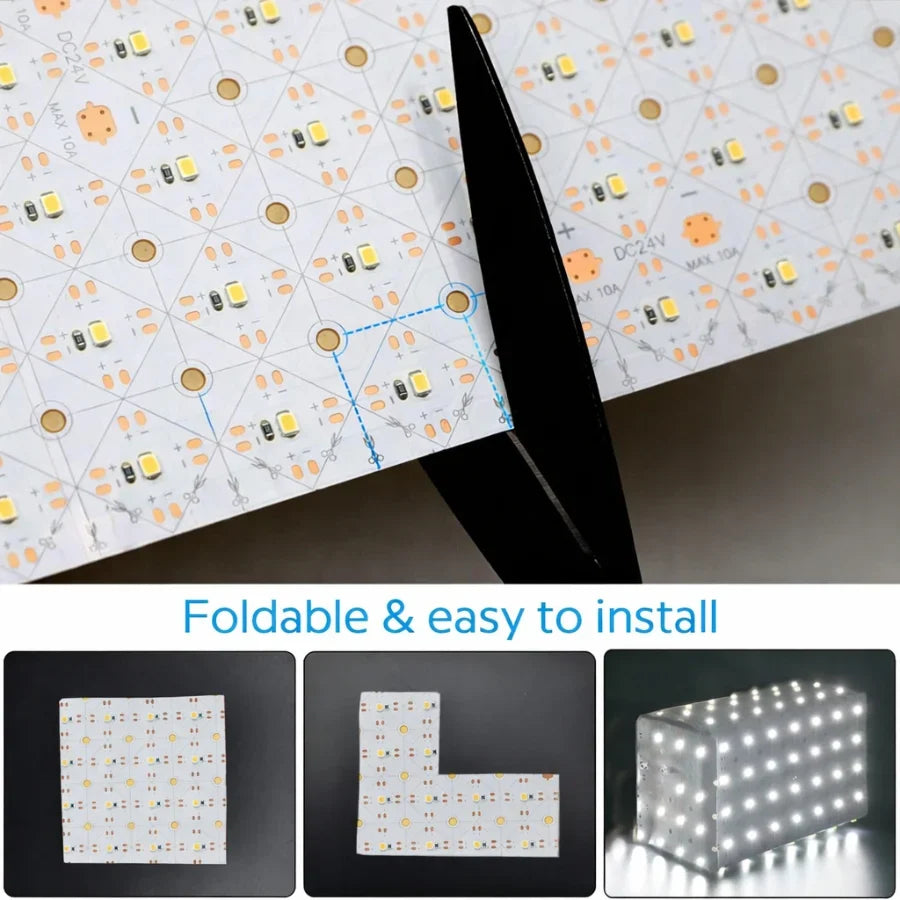

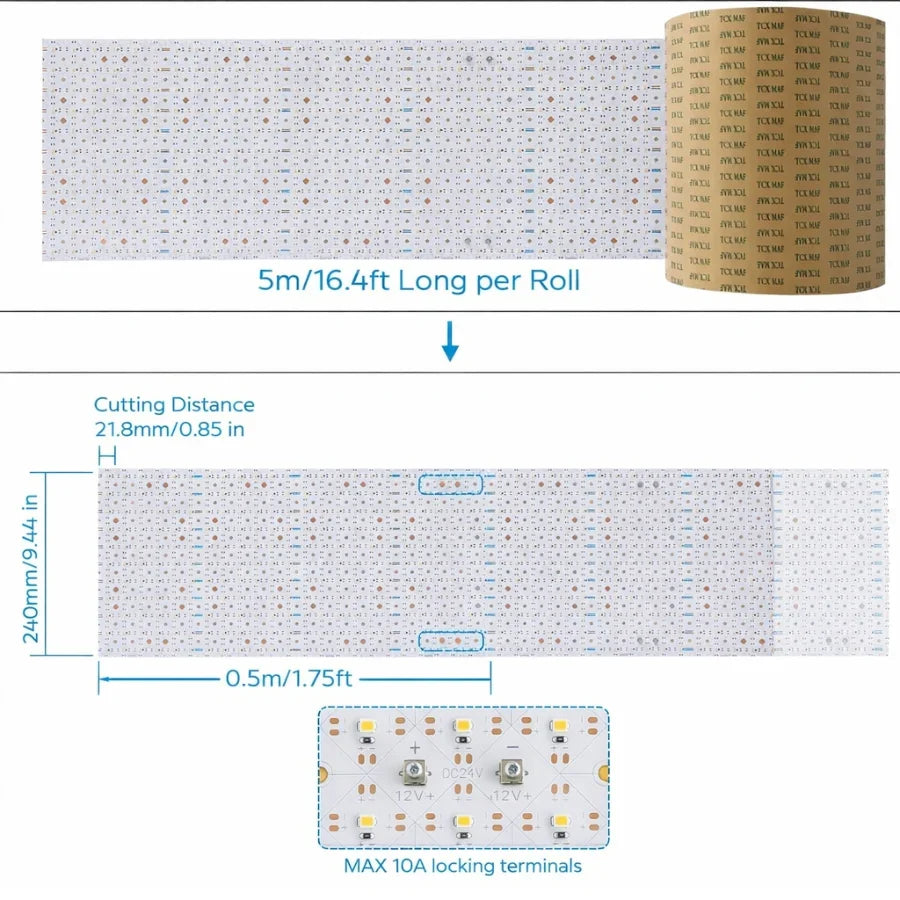

Cuttable for Custom Fit - Trim every 20.8mm (0.82in) along marked cut lines
-

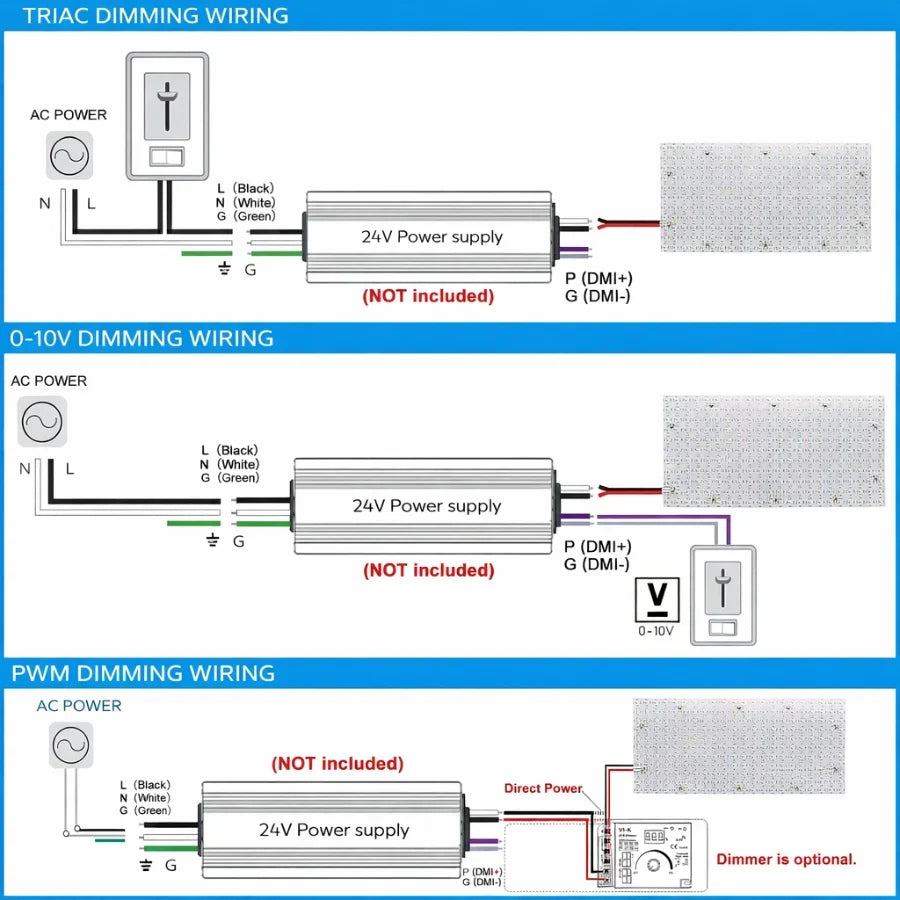

Dimmable Performance - Compatible with external 24V dimmers (not included)
-

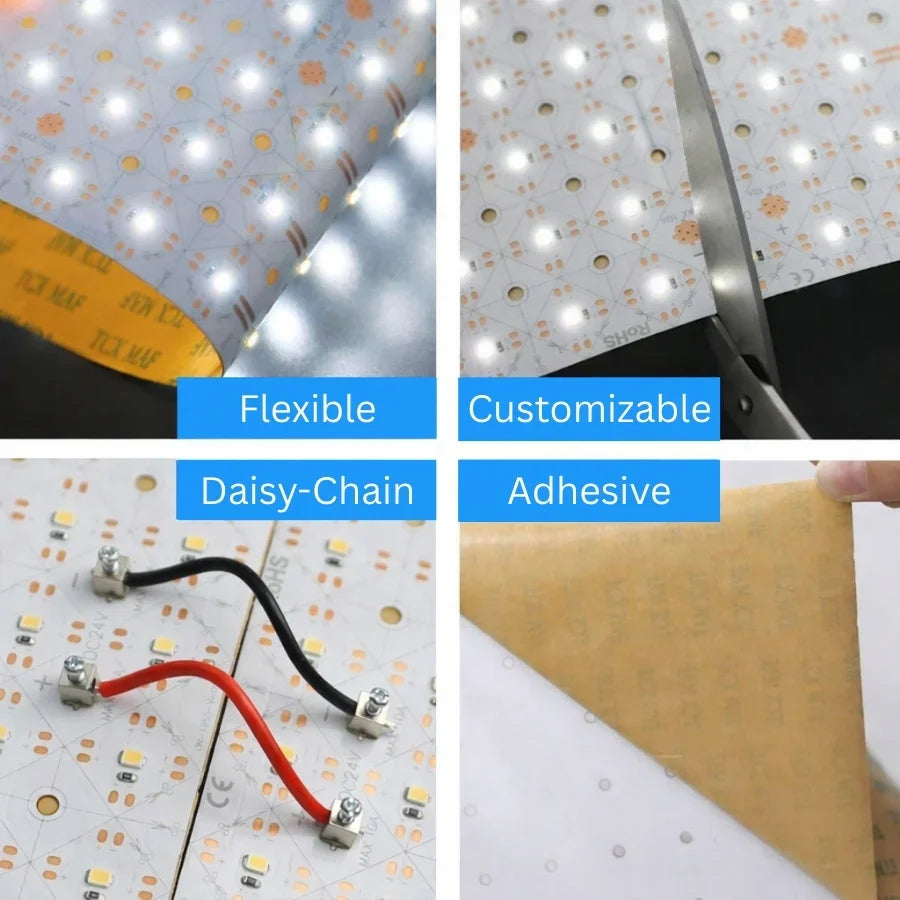

Easy Daisy-Chain Connection - Built-in screw terminals allow fast power and linking
-
UL-Listed Safety - Designed for professional-grade installations
- Indoor Use Only (IP20) - Ideal for dry locations such as countertops and feature walls
Specifications
| Feature | Details |
|---|---|
| Brand | Supply |
| Product Type | Giant LED Backlight Sheet Roll |
| Color Temperature | 6000K (Cool White) |
| Light Color | White |
| Brightness | 24,000 Lumens |
| CRI | 95+ |
| Voltage | 24V DC |
| Wattage | 240W per sheet |
| LED Type | SMD 2835 |
| Number of LEDs | 2,640 |
| Dimensions | 16.4 ft x 9.45 in (197 in length) |
| Coverage Area | 12.9 sq. ft. |
| Material | Flexible PCB |
| Cuttable Interval | Every 20.8mm (0.82 in) |
| Dimmable | Yes (External dimmer required, not included) |
| Power Supply | Not Included (Requires 24V ≥ 300W) |
| Ingress Protection | IP20 (Indoor, Dry Locations Only) |

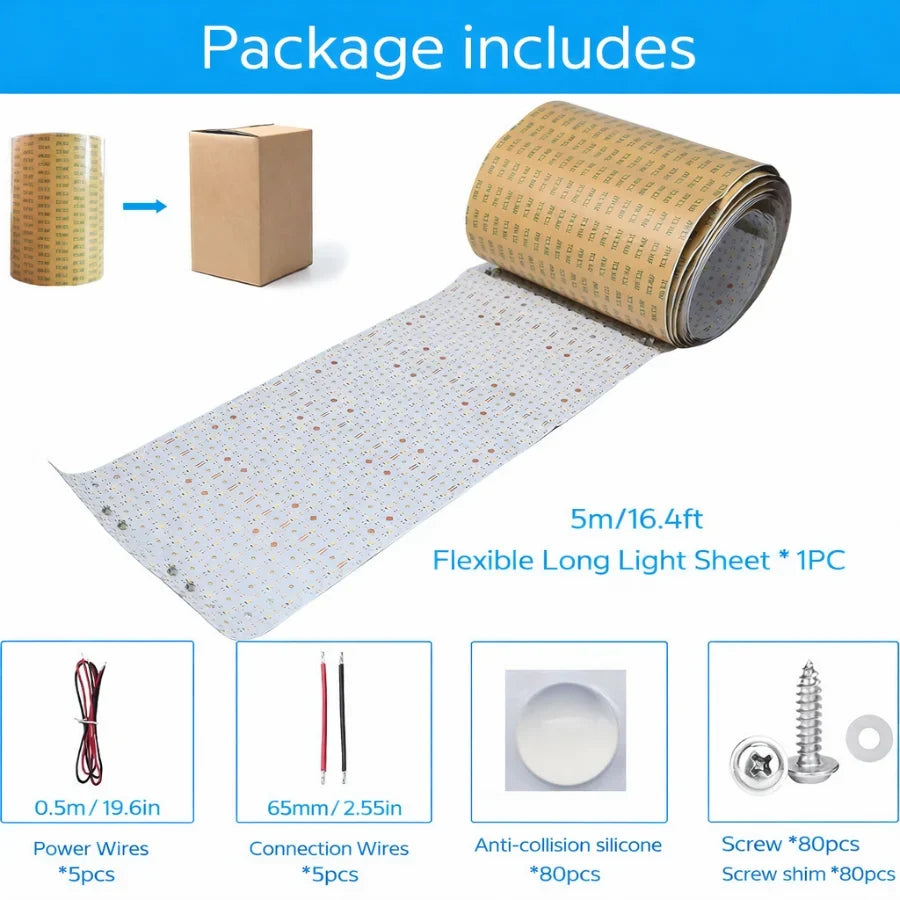

| Included Accessories | Power cables, interconnect cables, silicone spacers, screws, screw shims |
| Mounting Type | Surface / Backlighting |
| Application | Countertops, Accent Walls, Stained Glass, Commercial Displays |
| Weight | 2.9 lbs |
| Certifications | UL-Listed |
| Seasons | All Seasons |
